Avermedia M-103C (0405AB34) mini-PCI hybrid tuner

"AVerMedia Hybrid Mini-PCI TV Tuner Card is an analog and DVB-T TV receiver PC card with audio/video input functions. With AVerMedia Hybrid Mini-PCI TV Tuner Card built in your system, you can enjoy analog and DVB-T TV programs at anytime any place with your desktop, laptop, etc. Furthermore, you can connect your AV equipment, like Camcorder, VCR for audio/video capturing, editing and authorizing.
Key components includes,
1. Xceive Silicon Tuner (for Hybrid system)
2. Zarlink DVB-T Demodulator
3. Philips Video Decoder and Broadcast Audio Decoder / PCI bridge (for worldwide sku)"





The module uses 1.0amps @ 3.3volts (idle 0.4amps @ 3.3volts). DImensions are 59.75mm x 50.95mm (Type IIIA).

 The Avermedia M103 appears (unconfirmed) to come in serveral models/revisions:

  • M103 - Asus/Acer
  • M103-R - Clevo
  • M103A
  • M103C (as described here)



PCI information for the device is:

05:0b.0 0480: 1131:7133 (rev d1)
        Subsystem: 1461:f636
        Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr+ Stepping- SERR+ FastB2B- DisINTx-
        Status: Cap+ 66MHz- UDF- FastB2B+ ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
        Latency: 32
        Interrupt: pin A routed to IRQ 22
        Region 0: Memory at d0401800 (32-bit, non-prefetchable) [size=2K]
        Capabilities: [40] Power Management version 2
                Flags: PMEClk- DSI- D1+ D2+ AuxCurrent=0mA PME(D0-,D1-,D2-,D3hot-,D3cold-)
                Status: D0 PME-Enable- DSel=0 DScale=0 PME-
        Kernel driver in use: saa7134
        Kernel modules: saa7134

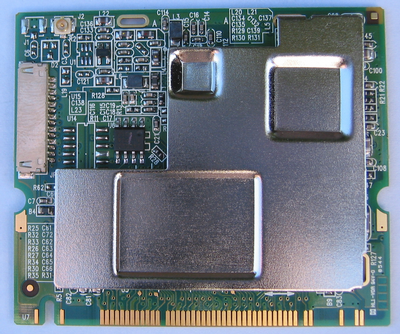

Avermedia M-103C (with heatsink)



Avermedia M-103C (component side)



Avermedia M-103C (component side)



Avermedia M-103C (reverse side)



Semiconductors


U5
Philips
CE9498   04
TSG05422

U4
Zarlink
0537A WS

U2
XCEIVE
XC3018ACQ  (cache)
0536ATW
K42996 2

U3
H
WA

U6
24CC02
A   PE4
4012

U12
SC 2.5
1565IS
0536

U4
JJ-W1K

U10
417B
0543

U9 & U11
J3-FOZ


eeprom dump

saa7133[0]: found at 0000:05:08.0, rev: 209, irq: 24, latency: 32, mmio: 0xd0400000
saa7133[0]: subsystem: 1461:f636, board: AVerMedia Cardbus TV/Radio (E506R) [card=117,insmod option]
saa7133[0]: board init: gpio is 23008d
saa7133[0]: i2c eeprom 00: 61 14 36 f6 00 00 00 00 00 00 00 00 00 00 00 00
saa7133[0]: i2c eeprom 10: ff ff ff ff ff 20 ff ff ff ff ff ff ff ff ff ff
saa7133[0]: i2c eeprom 20: 01 40 01 02 02 01 01 03 08 ff 00 0e ff ff ff ff
saa7133[0]: i2c eeprom 30: ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff
saa7133[0]: i2c eeprom 40: ff 65 00 ff c2 1e ff ff ff ff ff ff ff ff ff ff
saa7133[0]: i2c eeprom 50: ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff
saa7133[0]: i2c eeprom 60: ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff
saa7133[0]: i2c eeprom 70: ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff
saa7133[0]: i2c scan: found device @ 0xa0  [eeprom]
saa7133[0]: i2c scan: found device @ 0xc2  [tuner (analog)]
