Draytek Vigor 120v2 firmware upgrade

This shows a gallery of steps to upgrade the firmware on a Daytek Vigor 120 v2 ADSL modem from v3.2.6 to v3.2.6.1.

From the howto choose the appropriate firmware file (i.e. *.all or *.rst):

• *.all firmware format will remain the former configurations after upgrading firmware.

• *.rst firmware format will make the configurations be back to default settings after upgrading firmware.

Gallery

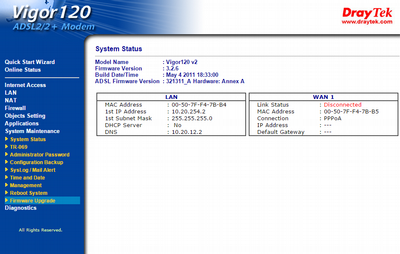

Prior to the installation v3.2.6 firmware is present.

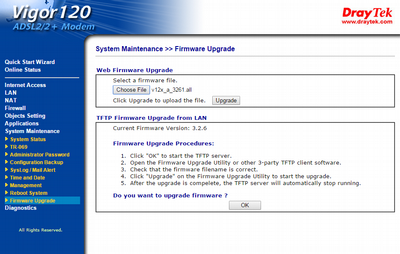

Firmware upgrade page:

Select the v3.2.6.1 firmware 'all' file from the local computer:

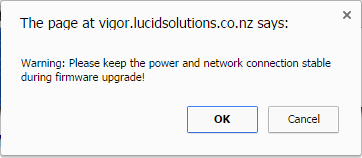

Confirmation dialog:

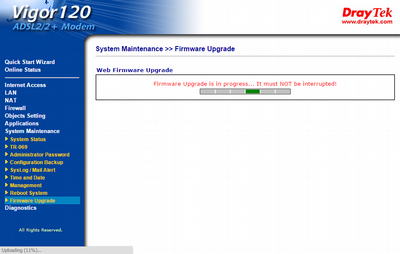

Progress:

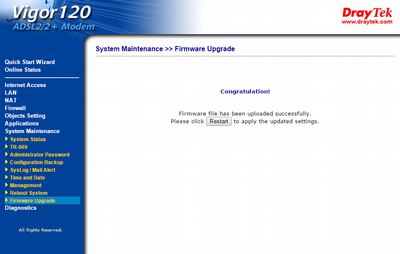

Success:

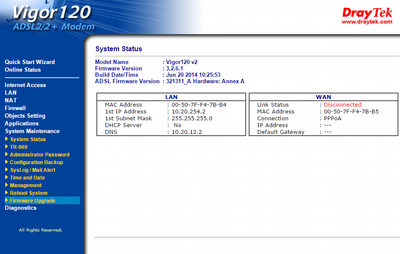

The firmware version is updated to v3.2.6.1

Links

• https://www.draytek.co.uk/archive/kb_vigor_reflash.html

• https://www.draytek.com/index.php?option=com_k2&view=item&id=1215&Itemid=293&lang=en
• http://www.draytek.net.nz/draytek/downloads/

• ftp://ftp.draytek.com/Vigor120 V2/Firmware
