Front panel cable for Supermicro SC512L chassis to an Intel D2500HN atom motherboard



 The Supermicro SC512L chassis comes with a front panel with a FP512 v3.0 front panel board.

Supermicro FP512 REV3.00 Front Panel PCB

Supermicro FP512 REV3.00 Front Panel PCB (back)

This board provides:

  • a power button
  • a reset button
  • a power LED
  • a disk activity LED
  • two NIC LEDS
  • a fault LED

The motherboard has support on the front panel header for:Intel d2500HN Front Panel Jumper 2013-07-09_234324.png

  • Hard disk LED
  • Power LED
  • Reset switch
  • On/Off switch
  • +5volts



Cable

Construct the cable using a short length of ribbon cable and two 16 pin IDC headers (with strain relief).



Signal function Supermicro FP512
Front Panel PCB pin
Intel D2500HN
header pins
Power switch
1 6
Power switch (Ground)
2 8
Reset switch
3 7
Reset switch (Ground)
4 5
HDD LED
13 1
HDD LED
14 3
Power LED
15 2
Power LED
16 4

Links

Appendices

SC512L front panel header pins

Note: The FP512 REV 3.0 PCB assembly supports two NIC LEDS. The second NIC uses the pins 9 and 10, which are marked as 'x' in the diagram below.

SC512L front panel header pins

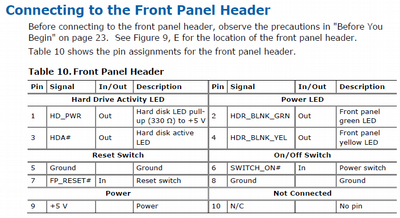

Intel D2500HN Front Panel Information

Intel D2500HN front panel info 2013-07-09_233915.png
