IBM 1015 / LSI SAS 9220-8i

FRU 46M0861

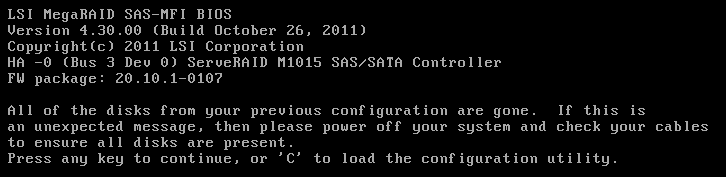

Boot message with BIOS version 4.30.00, firmware version 20.10.1-0107

Features

6Gb/s data transfer rate per port
Two x4 internal SFF8087 Mini-SAS connectors, positioned on top of board
x8 lane PCI Express 2.0 host interface
MD2 low-profile form-factor design
Typical power usage of 7W
Integrated RAID 0, 1, 1E, and 10
Support for up to 256 end devices
LSI SAS 2008 IO Controller’s Fusion-MPT™ 2.0 architecture can achieve more than 320,000 I/Os per second
